J-Series

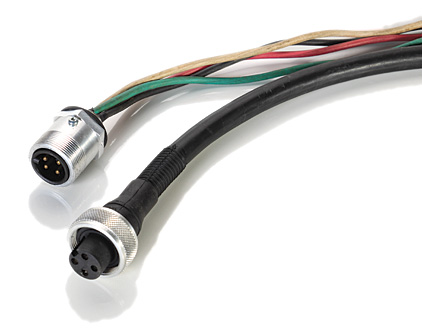

Mechanically secured moulded-to-cable round plugs and receptacles, polarized to ensure phase integrity. Applications include power and/or control for cranes, hoists, machine tools, limit and proximity switches, sensors and solenoid valves.

Download PDF

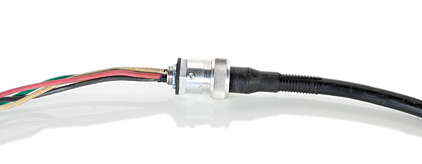

Mechanical: A heavy duty moulded-to cable round connector, polarized to ensure phase integrity. Plug secured with an aluminum coupling nut to the aluminum receptacle shell. Available in various lengths and sizes of neoprene jacketed cable.

Electrical: 2 - 4 contact configurations. Series Voltage Rating: 600 VAC. CSA rated and approved.

5 - 25 contact configurations. Series Voltage Rating: 300 VAC.

Amperage Rating: 10 Amps to 20 Amps.

Wire Sizes: From #16 AWG to #10 AWG.

CSA rated and approved

Options include: Hermaphrodite with reverse gender ground.

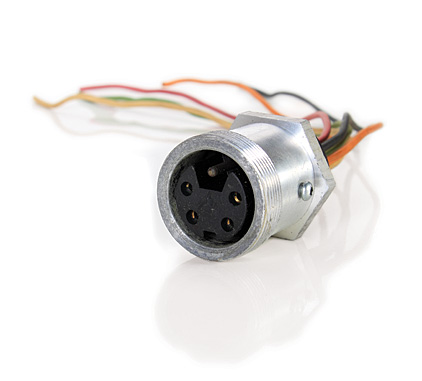

Receptacle Shells:Machined aluminum shell with moulded rubber interior, mounts with a locknut on a 1/2" to 2” pipe thread. Also available with a screw-through base with a 3" to 4” square flange

Custom: Total to partial custom solutions are available for all connectors and configurations. We will mould special connectors to your specifications and aid in the connector design process. Jumpers and extra long tails are also recommended and available.

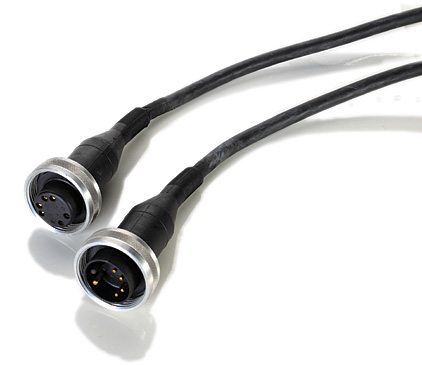

Quick Change Connectors - “J” & “JR” Series

Electrical: 2-4 contact configuration accept wire sizes from #12 AWG to #16 AWG.

Amperage Rating: 10 Amps to 20 Amps.

Series Voltage Rating: 600 VAC.

Connectors

# of	Plug Part No		Receptacle Part No		Volt	Amp	A.W.G.	Pipe
Contacts	Male	Female	Male	Female	Rating	Rating	No	Thread
2	J0216M	J0216F	JR0216M-1	JR0216F-1	600	10	16	(1/2)
2			JR0216M-2	JR0216F-2	600	10	16	(3/4)
2	J0214M	J0214F	JR0214M-1	JR0214F-1	600	15	14	(1/2)
2			JR0214M-2	JR0214F-2	600	15	14	(3/4)
2	J0212M	J0212F	JR0212M-1	JR0212F-1	600	20	12	(1/2)
2			JR0212M-2	JR0212F-2	600	20	12	(3/4)
3	J0316M	J0316F	JR0316M-1	JR0316F-1	600	10	16	(1/2)
3			JR0316M-2	JR0316F-2	600	10	16	(3/4)
3	J0314M	J0314F	JR0314M-1	JR0314F-1	600	15	14	(1/2)
3			JR0314M-2	JR0314F-2	600	15	14	(3/4)
3	J0312M	J0312F	JR0312M-1	JR0312F-1	600	20	12	(1/2)
3			JR0312M-2	JR0312F-2	600	20	12	(3/4)
4	J0416M	J0416F	JR0416M-1	JR0416F-1	600	10	16	(1/2)
4			JR0416M-2	JR0416F-2	600	10	16	(3/4)
4	J0414M	J0414F	JR0414M-1	JR0414F-1	600	15	14	(1/2)
4			JR0414M-2	JR0414F-2	600	15	14	(3/4)
4	J0412M	J0412F	JR0412M-1	JR0412F-1	600	20	12	(1/2)
4			JR0412M-2	JR0412F-2	600	20	12	(3/4)

Quick Change Connectors - “J” & “JR” Series

Electrical: 5 - 25 contact configuration accept wire sizes from #16 AWG to #14 AWG.

Amperage Rating: 7 to 11 Amps.

Series Voltage Rating: 300 VAC.

Connectors

# of	Plug Part No		Receptacle Part No		Volt	Amp	A.W.G.	Pipe
Contacts	Male	Female	Male	Female	Rating	Rating	No	Thread
5	J0516M	J0516F	JR0516M-2a	JR0516F-2a	300	8	16	(3/4)
5	J0514M	J0514F	JR0514M-2a	JR0514F-2a	300	11	14	(3/4)
5	J0512M	J0512F	JR0512M-2a	JR0512F-2a	300	16	12	(3/4)
6	J0616M	J0616F	JR0616M-3	JR0616F-3	300	8	16	1(1/2)
6	J0614M	J0614F	JR0614M-3	JR0614F-3	300	11	14	1(1/2)
7	J0716M	J0716F	JR0716M-3	JR0716F-3	300	7	16	1(1/2)
7	J0714M	J0714F	JR0714M-3	JR0714F-3	300	10.5	14	1(1/2)
8	J0816M	J0816F	JR0816M-3	JR0816F-3	300	7	16	1(1/2)
8	J0814M	J0814F	JR0814M-3	JR0814F-3	300	10.5	14	1(1/2)
16	J1616M	J1616F	JR1616M-3	JR1616F-3	300	7	16	2
20	J2016M	J2016F	JR2016M-3	JR2016F-3	300	7	16	2
25	J2516M	J2516F	JR2516M-4	JR2516F-4	300	6	16	2
25	J2514M	J2514F	JR2514M-4	JR2514F-4	300	9	14	2

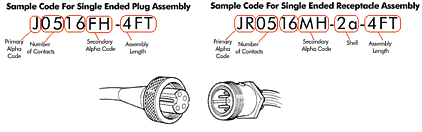

"J" Series Hermaphrodite

Electrical: 2 - 5 contact configuration accept wire sizes from #20 AWG to #10 AWG.

Amperage Rating: up to 20 Amps.

Series Voltage Rating: 600 VAC.

Connectors

# of	Plug Part No.		Receptacle Part No.		Amp	AWG	Pipe
Contacts	Male	Female	Male	Female	Rating		Thread
2	J0216MH	J0216FH	JR0216MH-2a	JR0216FH-2a	10	16	(3/4)
2	J0214MH	J0214FH	JR0214MH-2a	JR0214FH-2a	15	14	(3/4)
2	J0212MH	J0212FH	JR0212MH-2a	JR0212FH-2a	20	12	(3/4)

3	J0316MH	J0316FH	JR0316MH-2a	JR0316FH-2a	10	16	(3/4)
3	J0314MH	J0314FH	JR0314MH-2a	JR0314FH-2a	15	14	(3/4)
3	J0312MH	J0312FH	JR0312MH-2a	JR0312FH-2a	20	12	(3/4)

4	J0416MH	J0416FH	JR0416MH-2a	JR0416FH-2a	10	16	(3/4)
4	J0414MH	J0414FH	JR0414MH-2a	JR0414FH-2a	15	14	(3/4)
4	J0412MH	J0412FH	JR0412MH-2a	JR0412FH-2a	20	12	(3/4)

5	J0516MH	J0516FH	JR0516MH-2a	JR0516FH-2a	10	16	(3/4)
5	J0514MH	J0514FH	JR0514MH-2a	JR0514FH-2a	15	14	(3/4)
5	J0512MH	J0512FH	JR0512MH-2a	JR0512FH-2a	20	12	(3/4)

Shell Details:

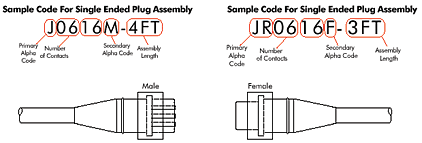

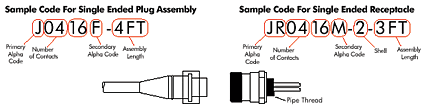

An additional Code is inserted into the Part Number for Quick Change style Receptacles just ahead of the Assembly Length as shown in the Sample Code.

1 R500M RECEPTACLE SHELL
Machined Aluminum Shell - Mounts with a locknut on a 1/2" Pipe Thread. Mates with a CN400 Coupling Nut

2 R750M RECEPTACLE SHELL
Machined Aluminum Shell - Mounts with a locknut on a 3/4" Pipe Thread. Mates with a CN400 Coupling Nut

2a R1475 RECEPTACLE SHELL
Machined Aluminum Shell - Mounts with a locknut on a 3/4" Pipe Thread. Mates with a CN1475 Coupling Nut

3 R1750 RECEPTACLE SHELL
Machined Aluminum Shell - Mounts with a locknut on a 1 1/2" Pipe Thread. Mates with a CN1475 Coupling Nut

3f R1750F FLANGED RECEPTACLE SHELL
Machined Aluminum Shell - Mounts with Screws through a 3" Square Flange. Mates with a CN1750 Coupling Nut

4 R2375 RECEPTACLE SHELL
Machined Aluminum Shell - Mounts with a locknut on a 2" Pipe Thread. Mates with a CN2375 Coupling Nut

4f R2375F FLANGED RECEPTACLE SHELL
Machined Aluminum Shell - Mounts with Screws through a 4" Square Flange. Mates with a CN2375 Coupling Nut

4fl F2375FL FLANGED RECEPTACLE SHELL
Machined Aluminum Shell - Mounts with Screws through a 4" Square Flange and Long Body. Mates with a CN2375 Coupling Nut
