E-Series
Attachable - Polarized connectors available in oval and round configurations. Applications include power and/or control for studio lighting and power distribution.

Download PDF

Mechanical: A heavy duty moulded oval and round attachable connectors, polarized to ensure phase integrity.

Electrical: 3, 4 or 6 contact configurations accept wire sizes from #12 AWG to #6 AWG

Amperage Rating: 30 Amps to 65 Amps.

Series Voltage Rating: 600 VAC.

CSA rated and approved



Options include: 6 contact configuration.

?Interlock Contacts: On 6 pin configuration Interlock Contacts will interrupt power in the event of an accidental disconnection.

Custom: Total to partial custom solutions are available for all connectors and configurations. We will mould special connectors to your specifications and aid in the connector design process. Jumpers and extra long tails are also recommended and available.

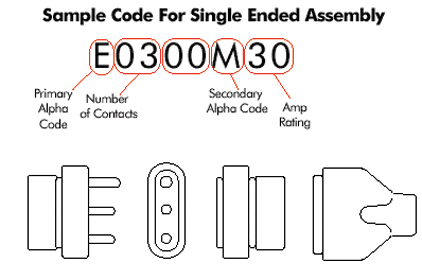

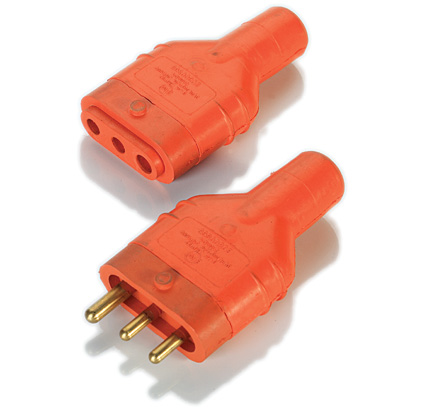

3 Conductor Round Attachable Connectors

Electrical: 3 contact configuration for the following cable sizes: #6 and #10 AWG 3 conductor cable.

Amperage Rating: up to 30 Amps

Series Voltage Rating: 600 VAC.

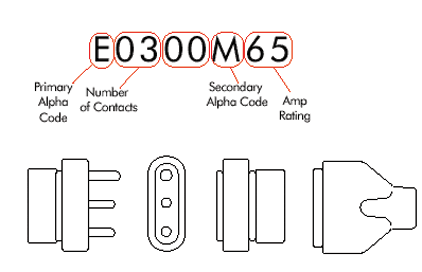

3 Conductor Round Attachable Connectors

Electrical: 3 contact configuration for the following cable sizes: #6 and #10 AWG 3 conductor cable.

Amperage Rating: up to 65 Amps.

Series Voltage Rating: 600 VAC.



   b series 3 connector
Connectors
BIM       Appoximate Dimensions
Part No. Description Amps Colour A B C D E
E0300F30 3 Contact Polarized Female Connector 30 Black 2(3/4) - 1(1/8)   2   -
E0300M30 3 Contact Polarized Male Connector 30 Black 2(3/4) 1(3/4) 1(1/8) - -
E0300S30 Shroud for 3 Contact Connector 30 Black 2(3/4) - 1(1/8) - 2(7/8)

E0300F65 3 Contact Polarized Female Connector 65 Orange 2(3/4) - 1(1/8) 2 -
E0300M65 3 Contact Polarized Male Connector 65 Orange 2(2/3) 1(3/4) 1(1/8) - -
E0300S65 Shroud for 3 Contact Connector 65 Orange 2(3/4) - 1(1/8) - 4(1/4)

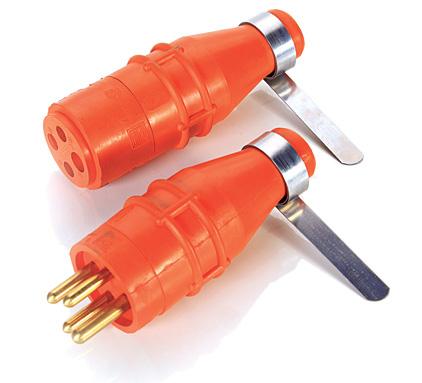

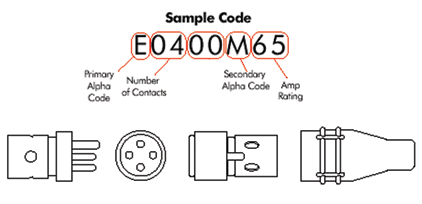

4 Conductor Round Attachable Connectors

Electrical: 4 contact configuration for: #6 AWG 4 conductor cable.

Amperage Rating: up to 60 Amps.

Series Voltage Rating: 600 VAC.



   b series 4 connector

Connectors
BIM       Approximate Dimensions
Part No. Description Amps Colour A B C D
E0400F60 4 Contact Polarized Female Connector 60 Orange 2(3/8) - 2(13/16) -
E0400M60 4 Contact Polarized Male Connector 60 Orange 2(3/8) 2 - -
E0400S60 Shroud for 3 Contact Connector 60 Orange 2(3/8) - - 5(1/4)

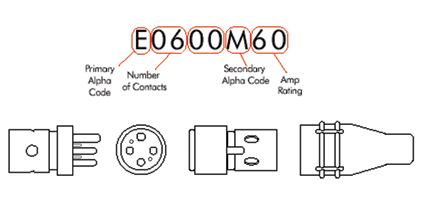

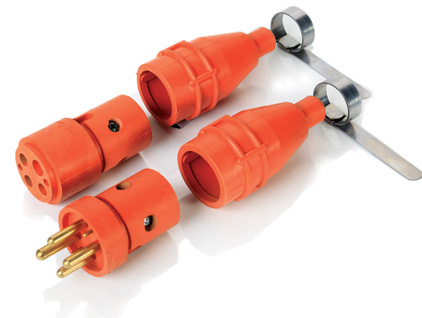

6 Conductor Round Attachable Connectors

Electrical: 3 contact configuration accept wire sizes #12 AWG and #10 AWG.

Amperage Rating: up to 95 Amps.

Series Voltage Rating: 600 VAC.



   b series branch connector
Accessories
E0300UC U-Clip for panel mounting of 3 pin connectors
EC-P3 Punch-Lok Clamp for E0300S30
EC-P5 Punch-Lok Clamp for E0300S65
EC-P6 Punch-Lok Clamp for E0400S60
