D-Series

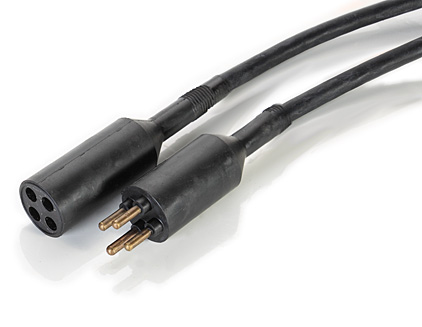

Heavy duty moulded-to-cable oval connector, polarized to ensure phase integrity. Applications include power for conveyors, electro-magnets, generators, motors, pumps, strapping machines, and welding equipment.

Mechanical: A heavy duty moulded-to-cable oval connector, polarized to ensure phase integrity. Available in various lengths and sizes of neoprene jacketed cable.

Electrical: 4 Contact configuration in the following cable sizes: #6, #8, #10 AWG.

Amperage Rating: 40 Amps.

Series Voltage Rating: 600 VAC.

CSA rated and approved



Options include: Special branched, multi-contactor configurations.

Safety Chain: Securely moulded to the cable behind the male and female plugs will help prevent accidental disconnects. The chain with snap is attached to the male end, this fastens to a metal eyelet that is attached behind the female plug.

Custom: Total to partial custom solutions are available for all connectors and configurations. We will mould special connectors to your specifications and aid in the connector design process. Jumpers and extra long tails are also recommended and available.

4 Conductor Polarized






Connectors
Male Female Amp AWG Approximate Dimensions
Part No. Part No. Rating Size A B C
D0410M D0410F 20 10 1(3/4) 2(7/8) 3(5/8)
D0408M D0408F 30 8 1(3/4) 2(7/8) 3(5/8)
D0406M D0406F 40 6 1(3/4) 2(7/8) 3(5/8)


"D" Series Hermaphrodite

Mechanical: Reverse gender ground.

Electrical: 4 Contact configuration in the following cable sizes: #6, #8, #10 AWG.

Amperage Rating: up to 40 Amps.

Series Voltage Rating: 600 VAC.

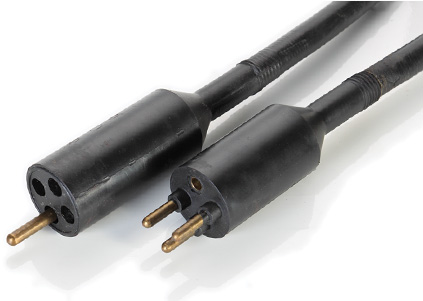

   d-series connector
Connectors
Male Female Amp AWG Volts Approximate Dimensions
Part No. Part No. Rating Size   A B C
D0410MH D0410FH 20 10 600 1(3/4) 2(3/4) 3(1/3)
D0408MH D0408FH 30 8 600 1(3/4) 2(3/4) 3(1/2)
D0406MH D0406FH 40 6 600 1(3/4) 2(3/4) 3(1/3)
