B-Series
Heavy duty moulded-to-cable oval connector, polarized to ensure phase integrity. Applications include power for conveyors, electro-magnets, generators, motors, pumps, strapping machines, and welding equipment.

Download PDF

Mechanical: A heavy duty, polarized, moulded-to-cable oval connector. Available in various lengths and sizes of neoprene jacketed cable with or without safety chains.

Electrical: 2, 3, and 4 contact configurations accept wire sizes from #14 AWG to #2 AWG.

Amperage Rating: 12 Amps to 95 Amps.

Series Voltage Rating: 600 VAC.

CSA rated and approved



Options include: Special branched, multi-contactor configurations.

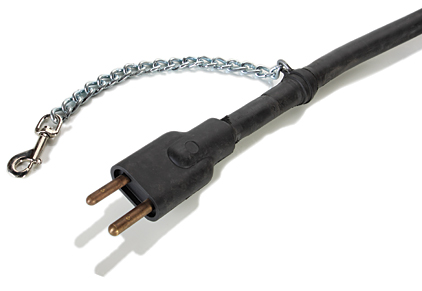

Safety Chain: Securely moulded to the cable behind the male and female plugs will help prevent accidental disconnects. The chain with snap is attached to the male end, this fastens to a metal eyelet that is attached behind the female plug.

Custom: Total to partial custom solutions are available for all connectors and configurations. We will mould special connectors to your specifications and aid in the connector design process. Jumpers and extra long tails are also recommended and available.

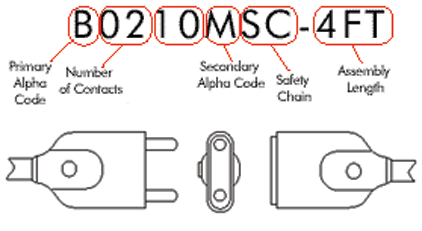

2 Conductor Polarized

Electrical: 2 contact configuration accept wire sizes from #12 AWG to #2 AWG.

Amperage Rating: 20 Amps to 95 Amps.

Series Voltage Rating: 600 VAC.




Connectors
Male Female Amp AWG Approximate Dimensions
Part No. Part No. Rating Size A B C D E
B0212M B0212F 20 12 1 2(1/8) 1(1/2) 4(7/16) 4(9/16)
B0212MSC B0212FSC 20 12 1 2(1/8) 1(1/2) 4(7/16) 4(9/16)
B0210M B0210F 25 10 1 2(1/8) 1(1/2) 4(7/16) 4(9/16)
B0210MSC B0210FSC 25 10 1 2(1/8) 1(1/2) 4(7/16) 4(9/16)
B0206M B0206F 50 6 1(1/4) 2(5/8) 1(1/2) 5(3/4) 5(1/2)
B0206MSC B0206FSC 50 6 1(1/4) 2(7/8) 1(1/2) 5(3/4) 5(1/2)
B0204M B0204F 70 4 1(3/8) 2(7/8) 1(7/8) 5(9/32) 5(3/4)
B0204MSC B0204FSC 70 4 1(3/8) 2(7/8) 1(7/8) 5(9/32) 5(3/4)
B0203M B0203F 80 3 1(3/8) 2(7/8) 1(7/8) 5(9/32) 5(3/4)
B0203MSC B0203FSC 80 3 1(3/8) 2(7/8) 1(7/8) 5(9/32) 5(3/4)
B0202M B0202F 95 2 1(3/8) 2(7/8) 1(7/8) 5(9/32) 5(3/4)
B0202MSC B0202FSC 95 2 1(3/8) 2(7/8) 1(7/8) 5(9/32) 5(3/4)


3 Conductor Polarized

Electrical: 3 contact configuration accept wire sizes from #12 AWG to #6 AWG.

Amperage Rating: up to 50 Amps.

Series Voltage Rating: 600 VAC.



   b series 3 connector
Connectors
Male Female Amp AWG Approximate Dimensions
Part No. Part No. Rating Size A B C D E
B0312M B0312F 20 12 1(1/8) 2(3/4) 1(1/4) 4(3/8) 4(3/8)
B0312MSC B0312FSC 20 12 1(1/8) 2(3/4) 1(1/4) 4(3/8) 4(3/8)
B0310M B0310F 25 10 1(1/8) 2(3/4) 1(1/4) 4(3/8) 4(3/8)
B0310MSC B0310FSC 25 10 1(1/8) 2(3/4) 1(1/4) 4(3/8) 4(3/8)
B0308M B0308F 35 8 1(1/8) 2(3/4) 1(1/4) 4(3/8) 4(3/8)
B0308MSC B0308FSC 35 8 1(1/8) 2(3/4) 1(1/4) 4(3/8) 4(3/8)
B0306M B0306F 50 6 1(1/8) 2(3/4) 1(1/4) 4(3/8) 4(3/8)
B0306MSC B0306FSC 50 6 1(1/8) 2(3/4) 1(1/4) 4(3/8) 4(3/8)

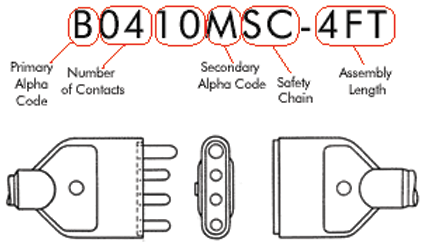

4 Conductor Polarized

Electrical: 4 contact configuration accept wire sizes from #10 AWG to #6 AWG.

Amperage Rating: up to 40 Amps.

Series Voltage Rating: 600 VAC.



   b series 4 connector

Connectors
Male Female Amp AWG Approximate Dimensions
Part No. Part No. Rating Size A B C D E
B0410M B0410F 20 10 1(1/8) 3(3/4) 1(5/8) 5(1/4) 5(11/16)
B0410MSC B0410FSC 20 10 1(1/8) 3(3/4) 1(5/8) 5(1/4) 5(11/16)
B0408M* B0408F 30 8 1(1/8) 3(3/4) 1(5/8) 4(11/16) 5(3/4)
B0408MSC* B0408FSC 30 8 1(1/8) 3(3/4) 1(5/8) 4(11/16) 5(3/4)
B0406M B0406F 40 6 1(1/4) 4(1/4) 1(5/8) 5(1/2) 6(1/2)
B0406MSC B0406FSC 40 6 1(1/4) 4(1/4) 1(5/8) 5(1/2) 6(1/2)

* Note: On 4 Conductor #8 AWG short female shroud at interface. Short male shroud on all others.

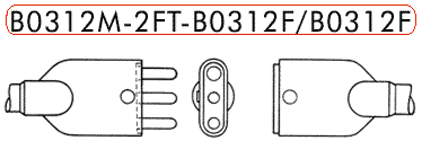

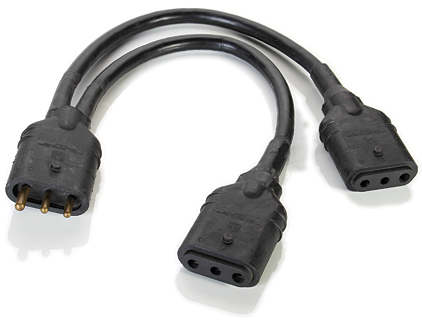

Branch

Electrical: 3 contact configuration accept wire sizes #12 AWG and #10 AWG.

Amperage Rating: up to 95 Amps.

Series Voltage Rating: 600 VAC.



   b series branch connector

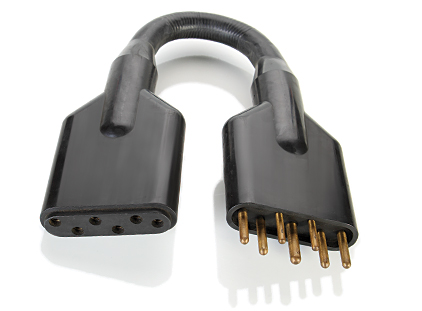

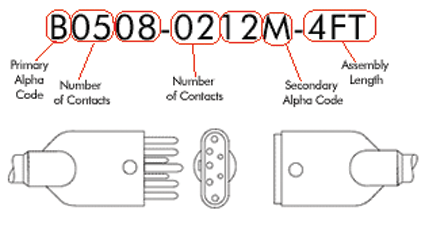

Multi

Electrical: 7 Contact configuration using the following cable: 5-#8 AWG, 2-#12 AWG.

Amperage Rating: up to 95 Amps.

Series Voltage Rating: 600 VAC.



   b series multi connector
